iPhone/iPod/iPad CD Changer interface for Alpine M-Bus

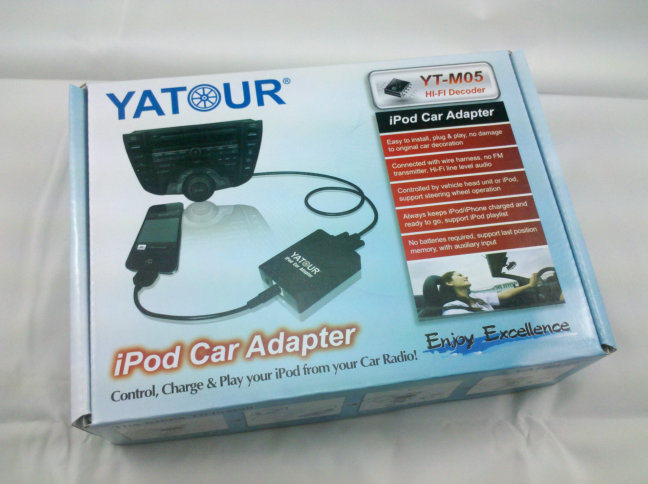

iPod car adapter(YT-M05)

Size:

l          Module unit: 75.5 x 58 x 20.5mm

l          iPod cable: 50cm; AUX cable:50cm;

l          CDC plug:95cm

l          Packing box: 210 x 150 x 60mm

l          Net weight: 90g;

l          Gross weight:300g;

l          50units/big carton

Introduction:

This is a digital integration kit between your iPod (iPhone) and OEM car stereo system for many vehicles. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage. Simply plug iPod to our car adapter , you can play audio through car audio system and enjoy music in your car.iPod car adapter insures CD quality sound from iPod/iPhone to the car stereo speakers.

Features:

l          Plug&Play

Direct connection via CD changer port

l          Line Level Audio
Deliver high-fidelity line level audio output from your iPod to your factory car stereo.

l          Integrated Controls
Allows you to control music from your iPod(Disc1 button), or radio and steering wheel controls.

l          Charges iPod/iPhone
Always keeps your iPod charged and ready to go. Charges 5V/12V models.

l          AUX Input
Connects any external audio device

l          Works with iPhone.Call in reminding via radio speaker

l          Last Position Memory. Automatically resumes CD play from the last point if there is interruption to CD play

l          Supports Apple iTunes playlist as Virtual CDs.

    Disc 2,Disc 3,Disc 4,Disc 5,…… mapped to playlists you create on iPod. Full control from car stereo.

l          Specific,not universal.

Different solutions for different protocols of factory stereos or aftermarket radios

Specification:

l          Voltage Input : 12V DC

l          Signal-to-Noise : 95DB

l          Max. Current : 600MA

l          Max. Voltage output : 12V

l          D/A Device : 24BIT 192KHZ

l          Total Harmonic Distortion : 0.01%

l          Frequency Response : 20HZ-20KHZ

l          Working Temperature : -10C- 80C

compatible with following iPod/iPhone models (Including Charging):
iPhone 2G 3G 3GS 4G 4GS
iPod touch 1st, 2nd, 3rd and 4th generations
iPod nano 1st, 2nd, 3rd, 4th, 5th and 6th generations
iPod Mini 1st, 2nd generations
iPod Video, iPod Photo, iPod Classic 4th, 5th and 6th generations

Compatible with iPad iPad2 (Does not charge iPad/iPad2 unless iPad's screen is sleeping, charges slowly)

Operating instructions:
Connect your i-Pod to the interface via the supplied cable, power on the radio and switch to CD changer as the source, it will then switch to your iPod and is now ready to use.
(1).iPod interface has two operating modes:
1. Hybrid Mode
2. Playlist Mode
The Disk # buttons on your factory radio allow you to switch between the above two modes. Depending on the model of your radio the disk buttons could be represented by numbers 1,2,3,4,5,6 or on some models Disk # are selected via the Disk+ Disk- buttons. Please refer to the user guide provided with your car radio for further information and to familiarise yourself with the functions of your particular radio and the procedure for disk # selection.
(2).For most car radios, the following operations will be supported:

l          Disk Change

CD(Disk+ - ) Button------ Operation

1.          Disk #1                    ------ Switch to Hybrid Mode,play all music files of iPod as one CD

2.          Disk#2->                   ------ Switch to Playlist Mode,play iTune's playlists as virtual multi CDs

Disk #2                    ------ Playlist 1

Disk #3                    ------ Playlist 2

Disk #4                    ------ Playlist 3

Disk #5                    ------ Playlist 4

Disk #6                    ------ Playlist 5

And so on

l          Next track/Previous track

When "Next track" button is pressed on car stereo, iPod will jump to the next song and car stereo track number will represent song number in a current playlist. And Vice Versa.

l          Fast Forward/ Fast Reverse

When "Fast Forward" button is pressed, iPod will start rewinding current track forward. Time on car stereo will represent actual position within the audio track. And Vice Versa.

l          Play/Pause

The iPod will automatically start play or pause.

l          Disk / Mode / CDC / SOURCE / AUX or FM/AM

It will switch between YATOUR and FM/AM

FAQ for iPhone/iPod Usage: How-to-create-playlists-in-itunes?

Compatible with following iPod/iPhone models (Including Charging):
iPhone 2G 3G 3GS 4G
iPod touch 1st, 2nd, 3rd and 4th generations
iPod nano 1st, 2nd, 3rd, 4th, 5th and 6th generations
iPod Mini 1st, 2nd generations
iPod Video, iPod Photo, iPod Classic 4th, 5th and 6th generations
