Product Description
|
Item No. |
YT-M04-VW 12pin |

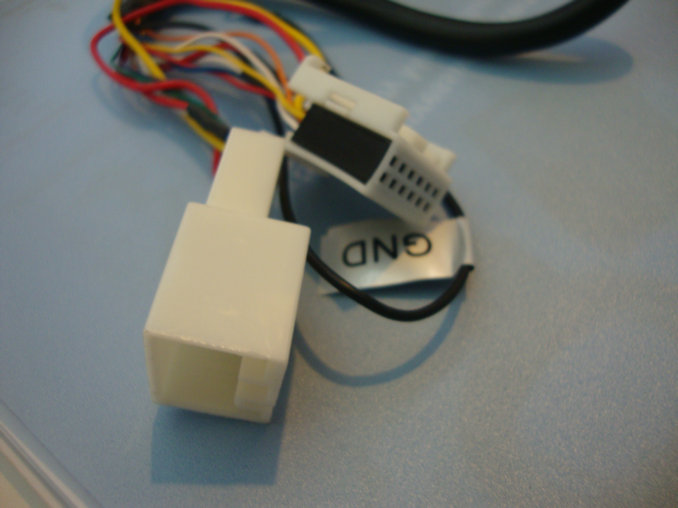

Includes: l Module unit for VW l VW 12pin plug l AUX cable |
| |
|
Compatible With |
Volks Wagen |
2009-2010 Beetle,2007-2010 EOS ,2004-2010 Fox ,2004-2010 Golf/GTI/R32 , 2004-2010 Jetta, 2004-2010 Passat ,2005-2010 Polo ,2007-2010 Rabbit ,2003-2010 T5 , 2007-2010 Tiguan ,2002-2010 Touareg ,2003-2010 Touran, |
| |
|
Skoda |
2008-2010 Spuerb, 2007-2010 Octavia |
| ||
|
Audi |
2008-2010 A3,2007-2010 A4/S4, 2007-2010 TT |
| ||
|
Note |
(1) Generally fit for new 2-DIN head unit; (2) Compatible with the following car radios: VW: Delta 6, Delta 7, Premium 6, Premium 7, R100,RCD100,RCD200,RCD210, RCD300, RCD 300 Touran, RCD310, RCD500,RCD510, Navigation 7L6,Z6Z7, RNS2-MFD2,RNS300/310/510; SKODA: Rhapsody, Beat, Cruise, Dance, Navi Nexus DVD, Stream, RCD-300,RCD300 MP3*; SEAT: Audiosystem CD1/CD2/CD3, RNS2-MFD2, PN1(Monochrome), PN3(Multicolor); Audi: Chorus 3, Concert 3, Symphony 3, 16:9 Navi Plus 3 (RNS-E),Navi RNS E*,Navi BNS 5.0*(without MMI); (3) Optional YT-MPC to hook up with existing CD Changer or XM | |||
DIGITAL MUSIC CHANGER
Item No.: YT-M04
Brand: YATOUR
Origin: Guangzhou ,China
The Package Consist of:
Control Unit Specific CDC Plug 3.5MM AUX cable User Manual
• Control Unit (Specail changer unit for special car brand)
• Specific CDC Plug(Special CDC plug for special car headunit)
• 3.5 mm AUX cable
• User manual
Size:
l Control unit: 94 x 66 x 16mm
l Packing box: 132 x 50 x 215mm
l Net weight: 80g;
l Gross weight:300g;
l 50units/big carton
Introduction:
This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.
Features:
1. Plug&play,CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
3. Controlled by vehicle Head Unit,support Steering wheel operation
4. With imported Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP3 MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDs
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install,no damage to original car decoration
11. Specific,not universal.Different solutions for different car models or car radios
File Setup and Edit
1. YATOUR support multi folder playback, one directory is mapped to one disk and one file is mapped to one track. The music file on root directory will display CD01 on car radio screen, The music file on sub-directory will display CD02, CD03…CD98, the order is according to the time that you save on SD card or USB Disk. The folder name can be English letter or Arabic numerals or the others. We suggest saving some music files on both root and sub-directory, it will increase the searching speed of YATOUR, if root directory is empty, it will start from first sub-directory (Radio screen display CD02)
2. YATOUR can support up to 99 folder (including root directory), every folder can save up to 99 files (You can save up to 1000 music files, but most of OEM radio only can display double-digit track number, like number 188 music file will display 88 on radio screen).
Specification:
l Voltage Input : 12V DC
l Signal-to-Noise : 95DB
l Max. Current : 600MA
l Max. Voltage output : 12V
l D/A Device : 24BIT 192KHZ
l Total Harmonic Distortion : 0.01%
l Frequency Response : 20HZ-20KHZ
l Working Temperature : -10C- 80C
