Product Description
Installation Guidance:http://www.danbp.org/w/Installing_an_USB/SD/MP3/Aux-in_adapter_on_the_Suzuki_Jimny_OEM_Radio
|
YTM06-CLAR |
Includes: l Module unit for Clarion(SUZ1) l Clarion plug l AUX cable | ||
|
Compatible With |
Clarion(CE-NET) |
VXZ 768R etc | |
|
Suzuki |
Compatible with Suzuki Radio OEM by Clarion: 2005-2010 Swift VI ,1998-2010 Jimny , 2006-2010 GRAND VITARA (ESCUDO \ Sidekick) , 2006-2010 SX4 | ||
|
Other models |
Buick Excelle(6 discs ) , Chevrolet EPICA(6 discs ) , Mazda 323(6 discs changer), Subaru McIntosh radio(not Kenwood) | ||
|
Compatibility Notice |
1.Requires disconnecting car stereo from car before installing Digital music changer; 2.Not compatible with VRX series(VRX 743R, VRX633R etc) 3.Tested with: Clarion VXZ 768R, Suzuki Jimny 2010(Clarion PS-2681H), | ||
Tested radio for aftermarket Clarion as below:

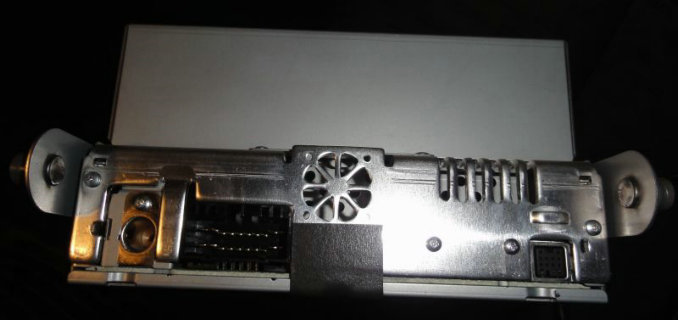

Tested radio for Suzuki OEM radio by Clarion as below:

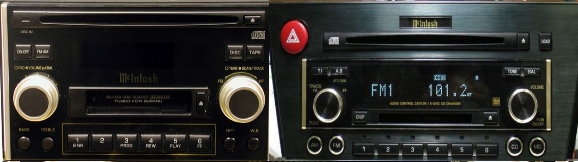

Tested Subaru McIntosh radios as below:
Digital Music Changer(YT-M06)
Customs code(HS code):8522909100
Size:
l Module size: 92 x 65 x 16.5mm
l CDC plug length:95cm; AUX cable length: 50cm
l Packing box: 210 x 150 x 60mm
l Module weight: 90g;
l Gross weight:300g-400g;
l 50units/big carton
Introduction:
This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.
Specification:
l Voltage Input : 12V DC
l Signal-to-Noise : 95DB
l Max. Current : 600MA
l Max. Voltage output : 12V
l D/A Device : 24BIT 192KHZ
l Total Harmonic Distortion : 0.01%
l Frequency Response : 20HZ-20KHZ
l Working Temperature : -10C- 80C
l Module case is made of aluminium alloy
Features:
1. Plug&play, modular design,CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
3. Controlled by vehicle Head Unit,support Steering wheel operation
4. With Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDs
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install,no damage to original car decoration
11. Different module firmware versions for different types of protocol of car stereos
Supported memory cards and USB sticks:
1.Max 8GB (2GB is most recommended);SD card is more recommended than USB stick.
2.Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.
3. Imposed folder naming system: CD01, CD02, CD03 ....
Doesn't read sub-folder and gets confused with other names in root of the drive.
4.Supports up to 15 folders (depending on the radio type) on your USB/SD.
5.Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles; Saving too big file(over 50MB) in any folder may also cause intermittent performance
6.Using music files formats other than WMA and MP3 may also cause intermittent performance.
7. The playback order of songs is in line with their created date.
8.Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.
9.To use the Aux-In port, it's necessary to remove the USB or SD card.
10.YT-M06 may does not work with some of new Kingston brand USB stick.
