Product Description
|
Item No. |
YT-M06-Renault 8pin |

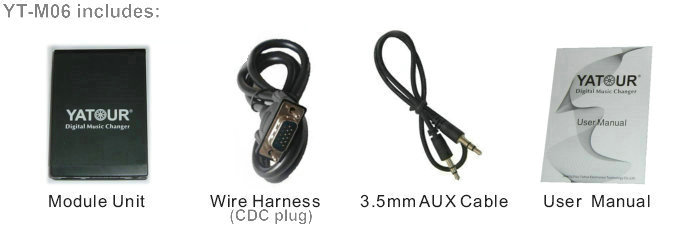

Includes: l Module unit for Renault 8pin l Renault 8pin plug l AUX cable |
| |
|
Compatible With |
Renault(OEM VDO radio) |
1998 - 2004 Clio, 2000 - 2010 Kangoo, 2003 - 2008 Megane, 2003 - 2008 Scenic, 2001 - 2007 Laguna , 2002 - 2011 Espace , 2000 - 2008 Traffic , 2007 - 2011 Twingo |
| |
|
Note |
1.Fits following radios: 2.Not compatible with Renault RADIOSAT Classic or VDO Dayton MS 4300 3. Requires powering off car head unit before installing Digital music changer | |||
Tested compatible radios list:
Digital Music Changer(YT-M06)
Size:
l Module size: 92 x 65 x 16.5mm
l CDC plug length:95cm; AUX cable length: 50cm
l Packing box: 210 x 150 x 60mm
l Module weight: 90g;
l Gross weight:300g;
l 50units/big carton
Introduction:
This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.
Specification:
l Voltage Input : 12V DC
l Signal-to-Noise : 95DB
l Max. Current : 600MA
l Max. Voltage output : 12V
l D/A Device : 24BIT 192KHZ
l Total Harmonic Distortion : 0.01%
l Frequency Response : 20HZ-20KHZ
l Working Temperature : -10C- 80C
Features:
1. Plug&play,CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
3. Controlled by vehicle Head Unit,support Steering wheel operation
4. With imported Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDs
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install,no damage to original car decoration
11. Specific,not universal.Different solutions for different car models or car radios
Supported memory cards and USB sticks:
1.Max 8GB ;
2.2GB is most recommended;SD card is more recommended than USB stick;
3.Supports up to 15 folders on Toyota Range models;
4.Overloading the memory card or stick (with too many folders or files) may cause problems with display of CD and /or track number and may also cause intermittent performance;
5.Using music files formats other than WMA and MP3 may also cause intermittent performance;
6.Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system;
7.Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD
8. Imposed folder naming system: CD01, CD02, CD03 ....
Doesn't read sub-folder and gets confused with other names in root of the drive;
9.The playback order of songs is in line with their created date;
10.To use the Aux-In port, it's necessary to remove the USB or SD card.
11.YT-M06 may does not work with some of new Kingston brand USB stick
