Product Description
|
Item No. |
YT-M06- RD3 |
Includes: l Module unit for RD3 l RD3 plug l AUX cable |
| ||
|
Compatible With |
Peugeot |
1997 - 2004 Peugeot 106, 1997 - 2004 Peugeot 2006 , 1998 - 2005 206 , 2004 – 2005 206CC 2002 - 2005 307 , 2004 - 2005 307sw , 2002 - 2004 406 , 2004 - 2005 407sw 2002 - 2003 607 , 1997 - 2001 806 , 2002 - 2005 807 |
| ||
|
CITROEN |
2002 – 2005 C3 , 2001 – 2005 C5 , <-2003 C8 , 2001 - 2005 Xsara |
| |||
|
Note |

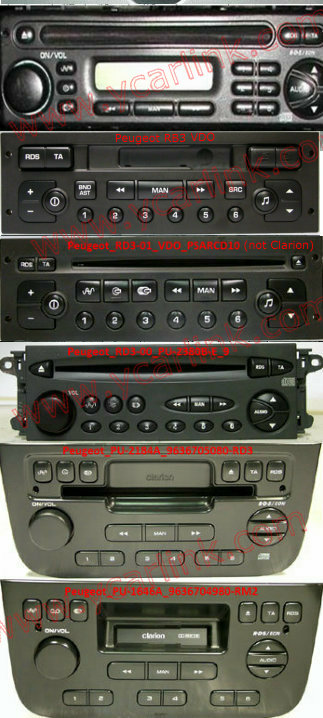

Tested radios: RD3 by VDO(Citroen C2 2003), RM2 by Clarion ( Peugeot 406 2000), | ||||
Tested radios as folows:

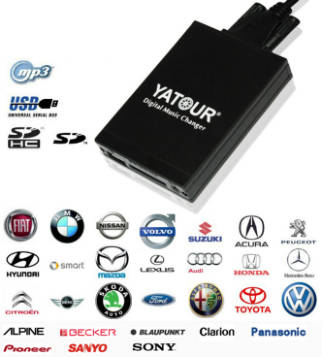

Digital Music Changer(YT-M06)
Size:
l Module size: 92 x 65 x 16.5mm
l CDC plug length:95cm; AUX cable length: 50cm
l Packing box: 210 x 150 x 60mm
l Module weight: 90g;
l Gross weight:300g;
l 50units/big carton
Introduction:
This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.
Specification:
l Voltage Input : 12V DC
l Signal-to-Noise : 95DB
l Max. Current : 600MA
l Max. Voltage output : 12V
l D/A Device : 24BIT 192KHZ
l Total Harmonic Distortion : 0.01%
l Frequency Response : 20HZ-20KHZ
l Working Temperature : -10C- 80C
Features:
1. Plug&play,CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
3. Controlled by vehicle Head Unit,support Steering wheel operation
4. With imported Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDs
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install,no damage to original car decoration
11. Specific,not universal.Different solutions for different car models or car radios
Supported memory cards and USB sticks:
1.Max 8GB ;
2.2GB is most recommended;
3.Patriot brand memory cards are Not supported;
4.Overloading the memory card or stick (with too many folders or files) may cause problems with display of CD and /or track number and may also cause intermittent performance.
5.Using music files formats other than WMA and MP3 may also cause intermittent performance.
6.Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system
