Car Audio Interface for BMW Mini Rover 75 17-pin Round (MP3 USB SD AUX )



YTM06-BMW1			Includes: Module unit for BMW BMW 10pin plug with 17 way round pinPlug&Play connector AUX cable
Compatible Models	Car Model	Year from		Year to	Radio Maker	On-board computer
	BMW3 Series E36	1991		1998	all	Business
	BMW3 Series E36	1991		1998	all	Professional
	BMW3 Series E46	1998		2005	all	Business
	BMW3 Series E46	1998		2005	all	Professional
	BMW3 Series E46	1998		2005	all	4:3Navigation
	BMW5 Series E39	1996		2000	all	Business
	BMW5 Series E39	1996		2000	all	Professional
	BMW5 Series E39	1996		2000	all	4:3Navigation
	BMW5 Series E39	1996		2000	all	16:9Navigation
	BMW7 Series E38	1994		2001	all	Business
	BMW7 Series E38	1994		2001	all	Professional
	BMW7 Series E38	1994		2001	all	4:3Navigation
	BMW Compact E46	1994		2006	all	Business
	BMW K1200LT	1997		2004	Becker	Business 2000
	BMW K1200LT	1997		2004	Becker	Professional 2000
	BMW R1200LT	1997		2004	Becker	Professional 2000
	BMW X3	2004		2006	all	4:3 Navigation
	BMW X5	2001		2006	all	4:3 Navigation
	BMW Z3	1996		2002	all	Business
	BMW Z8	2001		2002	all	Business
	BMW Z8	2001		2002	all	Business CD
	BMW Z8	2001		2002	all	Navigation 4:3
	MINI R5x	2001		2006		Wave cassette
	Rover 75	1999		2005		4:3 Navi
Compatible Head Units	BE3350 (Business cassette), BE3351(Business cassette), BE6510 (Professional), BP8272 (Business CD) , BP9272 (Business CD), PH7050 (Business cassette), PH7070 (Businesscassette), PH7090 (navigation system), PH7860T (Business RDS), PH7950(Business cassette), PH8060 (Business CD), PH9860 (BUSINESS CDRDS), Autoradio(not DSP), BordMonitor,BMW with monitor(not DSP), Business CDRDS, navigation system, car radio with the 17 pins round connector
CompatibilityNotice	(1) Not compatible with BMW Reverse RDS radios/BMW radioswith DSP(Digital Sound Processor) system . (2)Not compatible with BMW radios without I-Bus (up to 1997) (3) Supports ID3 tag(text display) on text capable radio

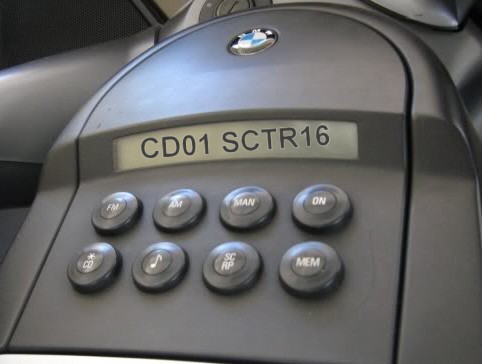

Recently tested model:

BMW K1200LT Becker Professional 2000

Digital Music Changer(YT-M06)
Customs code(HS code):8522909100

Size:

l          Module size: 92 x 65 x 16.5mm

l          CDC plug length:95cm;   AUX cable length: 50cm

l          Packing box: 210 x 150 x 60mm

l          Module weight: 90g;

l          Gross weight:300g-400g;

l          50units/big carton

Introduction:

This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.

Specification:

l          Voltage Input : 12V DC

l          Signal-to-Noise : 95DB

l          Max. Current : 600MA

l          Max. Voltage output : 12V

l          D/A Device : 24BIT 192KHZ

l          Total Harmonic Distortion : 0.01%

l          Frequency Response : 20HZ-20KHZ

l          Working Temperature : -10C- 80C

l          Module case is made of aluminium alloy

Features:

1. Plug&play, modular design,CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
3. Controlled by vehicle Head Unit,support Steering wheel operation
4. With Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDs
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install,no damage to original car decoration
11. Different module firmware versions for different types of protocol of car stereos

Supported memory cards and USB sticks:

1.Max 8GB (2GB is most recommended);SD card is more recommended than USB stick.

2.Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.

3. Imposed folder naming system: CD01, CD02, CD03 ....

Doesn't read sub-folder and gets confused with other names in root of the drive.

4.Supports up to 15 folders (depending on the radio type) on your USB/SD.

5.Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles; Saving too big file(over 50MB) in any folder may also cause intermittent performance

6.Using music files formats other than WMA and MP3 may also cause intermittent performance.

7. The playback order of songs is in line with their created date.
8.Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.

9.To use the Aux-In port, it's necessary to remove the USB or SD card.

10.YT-M06 may does not work with some of new Kingston brand USB stick.
